Efficiency

With a load of 3 kg, the independently developed robot control algorithm is used to achieve linkage control of various axes.

Based on the feeding characteristics of the stamping industry, excellent motion trajectories are automatically generated, with smooth and efficient movements and an efficiency of up to 15 times/min.

Servo System

-All axes are equipped with high-performance servo systems.

Line optimization, overall superior performance, and equipped with power-off position memory function to avoid the trouble of origin reset.

-Once set, it can be used for a long time.

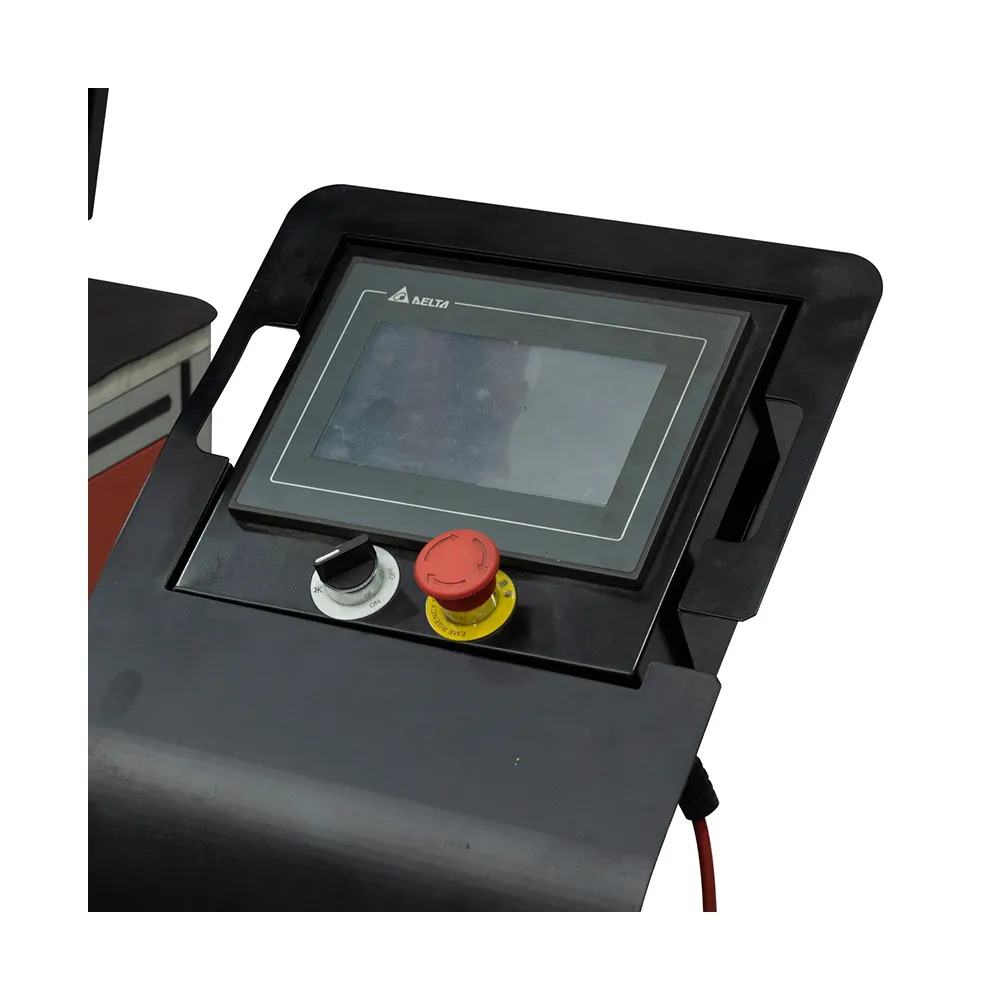

Adopting open programmable technology, supporting motion trajectory editing, simple operation, flexible control, can store multiple product information, strong interchangeability, and can be used for a long time with one set.

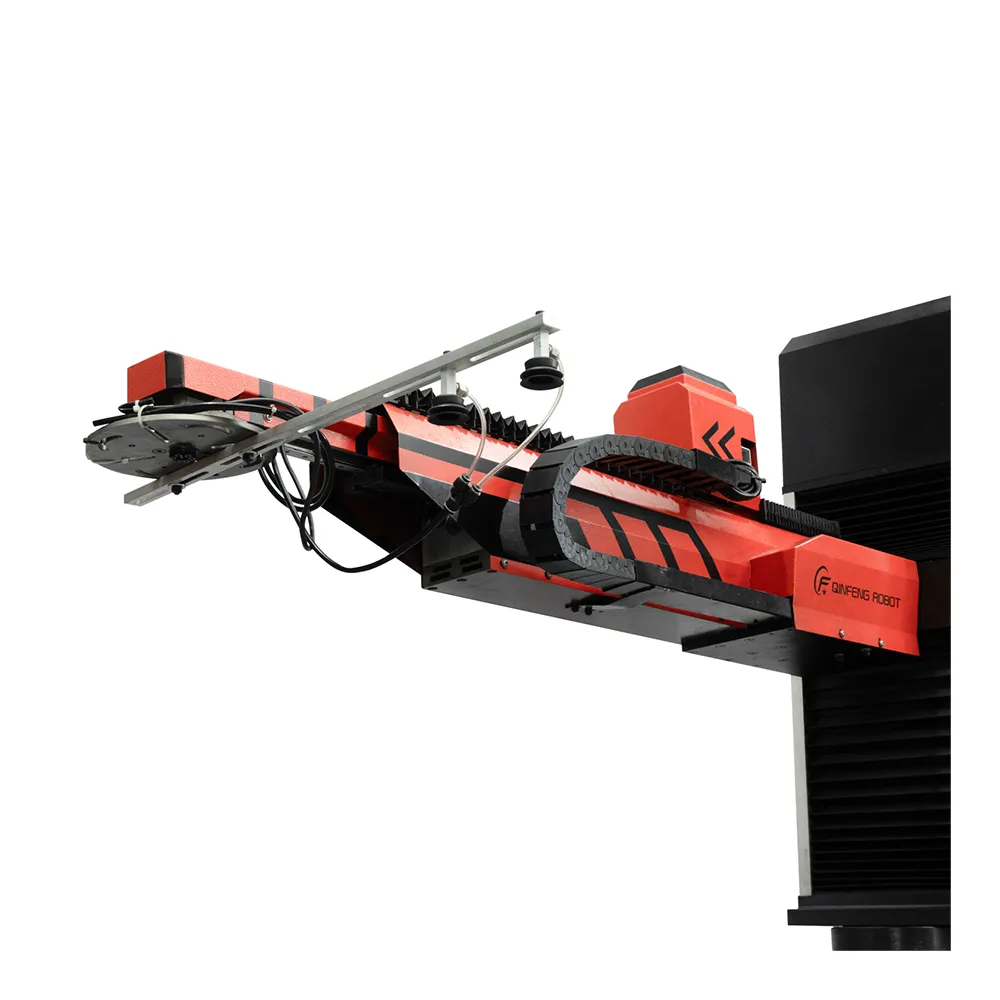

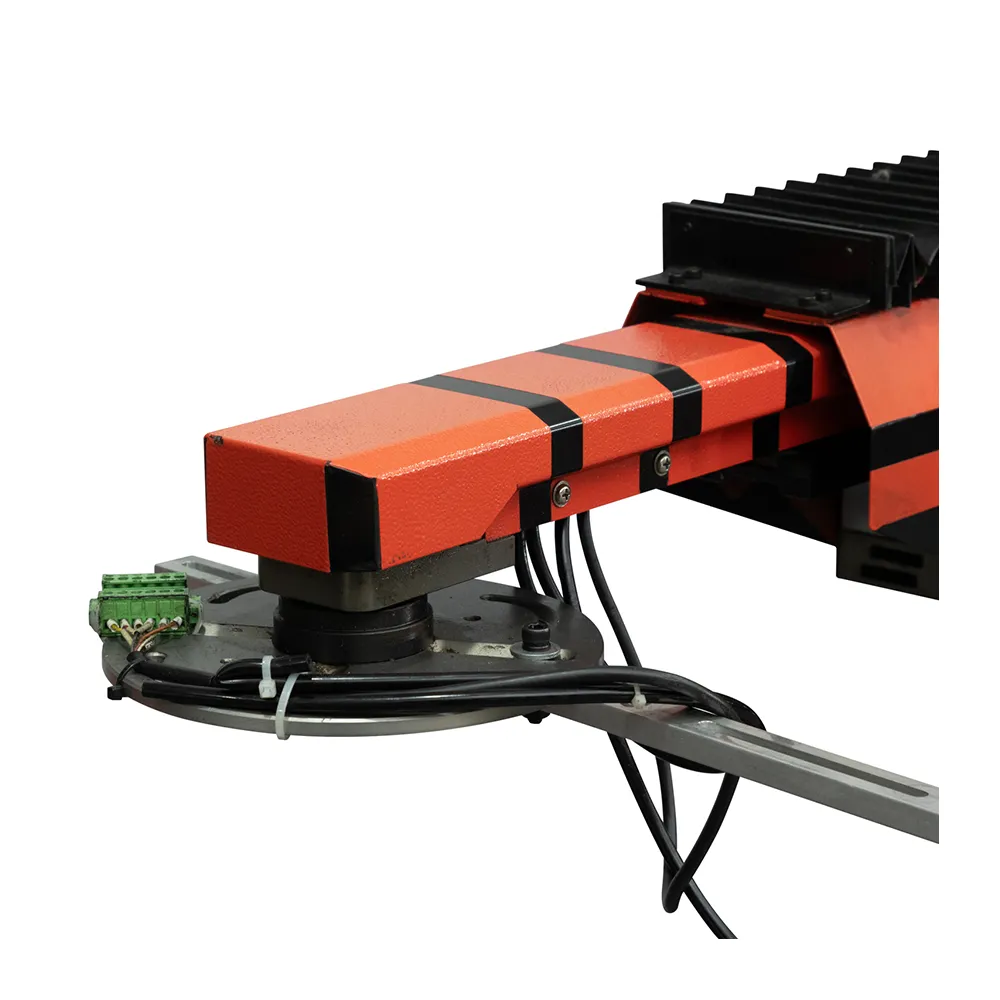

Robot Arm

High flexibility to achieve various stamping actions in all directions and from multiple angles:

Flipping, waste removal (before discharging), side hanging, oblique placement or stacking, etc.

Suitable for continuous mold, single machine multi-mode and other mold processes.

Four axis / five axis options are available.

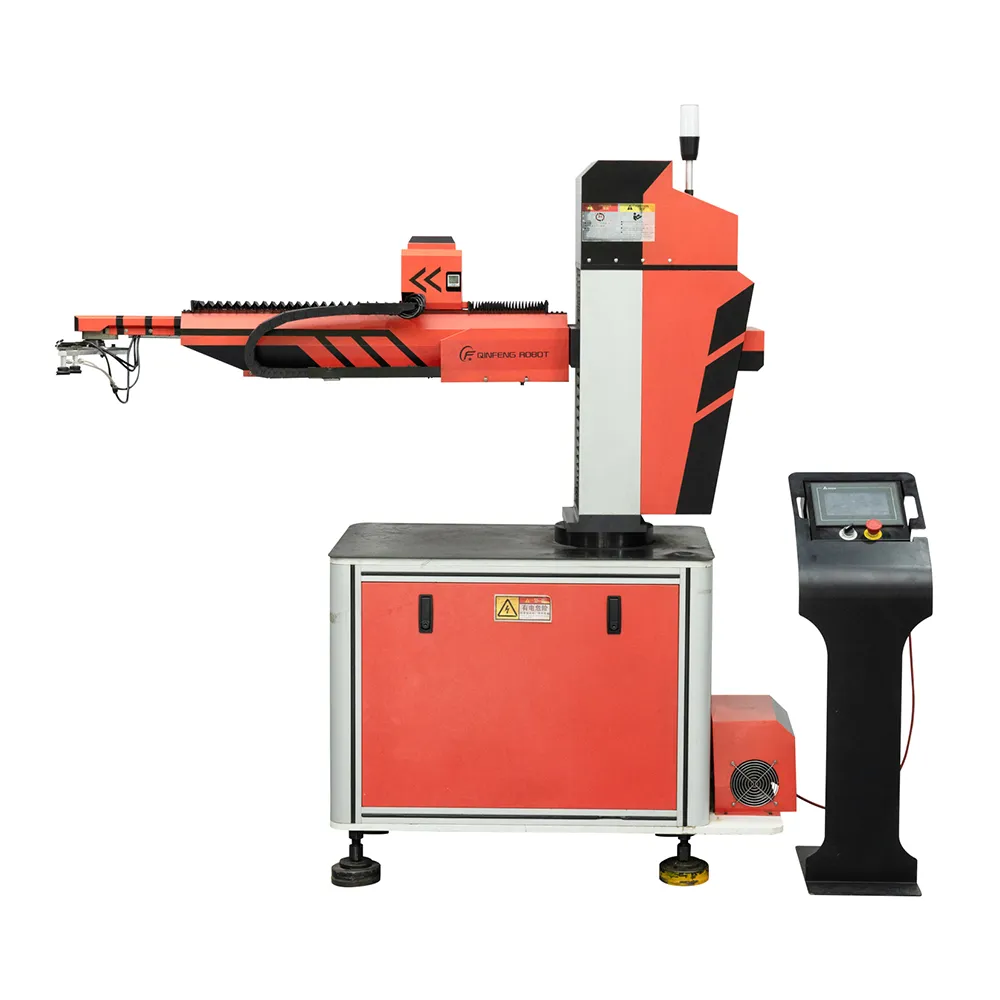

The core role and position of 5-axis high-end robotic arms in industrial automation

High precision and high efficiency:

The 5-axis high-end robot arm has high-precision positioning capability, ensuring the accuracy of machining and assembly.

Through multi axis linkage, efficient production and processing can be achieved, improving overall efficiency.

Ability to handle complex tasks:

The 5-axis robotic arm can complete complex 3D spatial trajectory planning and precise positioning, adapting to complex task requirements.

Suitable for processing complex curved parts and irregular workpieces, meeting diverse production needs.

Widely applicable fields:

Widely used in various industries such as automobile manufacturing, aerospace, electronics and electrical appliances, medical equipment, etc.

Promote the transformation of intelligent manufacturing, enhance enterprise competitiveness and production efficiency.

Irreplaceable position:

The 5-axis robotic arm has a high technical barrier and is an ideal choice for handling complex surface machining tasks.

In terms of high precision, high efficiency, and high reliability, it has advantages that traditional robotic arms cannot match.

In summary, 5-axis high-end robotic arms play a core role in industrial automation and hold an irreplaceable position.

Question: How does the 5-axis advanced robot arm pneumatic OEM manipulator perform in material handling?

Answer: Our 5-axis robot arm adopts advanced pneumatic technology with high precision and high stability material handling capability, which is able to adapt to various complex working environments and improve material handling efficiency.

Question: What is the load capacity of this robot arm?

Answer: Our robot arm is designed to have a load capacity that is above the industry standard and can easily handle material handling needs up to 5 kilograms.

Question: What is the repeatability of the robot arm?

Answer: The repeatable positioning accuracy of the robot arm is up to ±0.01mm, which ensures high precision in material handling and processing.
