Efficiency

With a load of 5 kg, the independently developed robot control algorithm is used to achieve linkage control of various axes.

Based on the feeding characteristics of the stamping industry, excellent motion trajectories are automatically generated, with smooth and efficient movements and an efficiency of up to 15 times/min.

Servo System

-All axes are equipped with high-performance servo systems.

Line optimization, overall superior performance, and equipped with power-off position memory function to avoid the trouble of origin reset.

-Once set, it can be used for a long time.

Adopting open programmable technology, supporting motion trajectory editing, simple operation, flexible control, can store multiple product information, strong interchangeability, and can be used for a long time with one set.

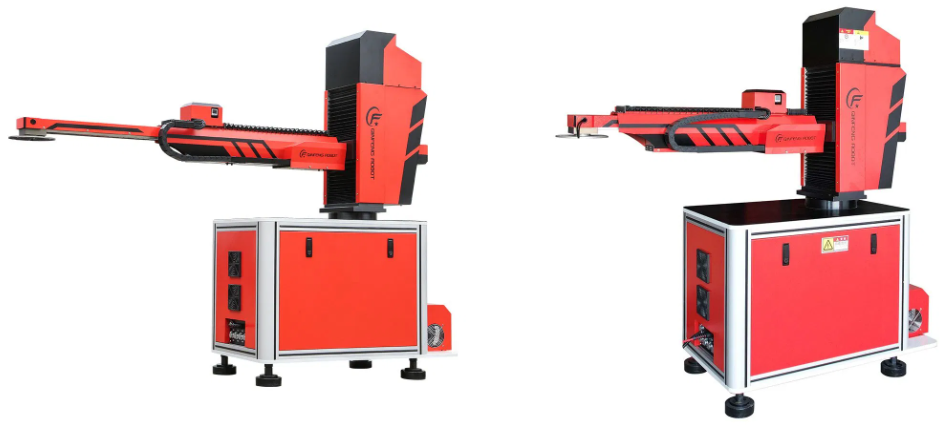

Robot Arm

High flexibility to achieve various stamping actions in all directions and from multiple angles:

Flipping, waste removal (before discharging), side hanging, oblique placement or stacking, etc.

Suitable for continuous mold, single machine multi-mode and other mold processes.

Four axis / five axis options are available.

How can 5-axis material handling operators reduce the failure rate and downtime of production line equipment through intelligent control systems and high-precision motion control, thereby improving production stability

5-axis material handling operators play a crucial role in modern production lines, especially in automated stamping production. Through intelligent control systems and high-precision motion control technology, 5-axis manipulators can significantly improve the stability of production lines, reduce equipment failure rates and downtime, and ensure the efficiency and continuity of the production process. The following is a specific analysis of this process:

1. Intelligent control system: real-time monitoring and predictive maintenance

5-axis material handling operators are usually equipped with advanced intelligent control systems, which can not only monitor the working status of the equipment in real time, but also collect and analyze production data to identify potential faults or unstable factors in a timely manner. By tracking the real-time operation status of the equipment, the intelligent control system can provide precise feedback and adjustment instructions, thereby minimizing the risk of equipment failure and shutdown.

Real time data collection and monitoring: Intelligent systems can continuously collect various data from the operator, such as speed, load, temperature, etc., and compare and analyze them with historical data to discover potential problems or abnormal trends.

Warning and early diagnosis: Intelligent systems can predict possible faults in advance through data analysis, such as mechanical damage, electrical faults, or operational errors, thereby triggering alarms in advance and reminding operators to perform maintenance or adjustments, avoiding production interruptions caused by sudden failures.

Predictive maintenance: By monitoring the health status of equipment, intelligent control systems can predict the maintenance needs of equipment, ensuring that repair and maintenance work is carried out before equipment failures occur, thereby reducing production line downtime.

2. High precision motion control: reduce mechanical wear and errors

The high-precision motion control system of the 5-axis manipulator is another key factor in ensuring production stability and reducing failure rates. Through high-precision motion control technology, the 5-axis manipulator can accurately perform complex tasks such as handling, feeding, and positioning, reducing excessive wear and unnecessary error accumulation of mechanical components.

Accurate path planning and motion control: The 5-axis robot uses precise path planning and dynamic adjustment algorithms to ensure that each operation is completed under high-precision control. This not only improves the accuracy of handling operations, but also reduces the burden on mechanical systems and extends the service life of key components.

Reduce operational errors: Compared to manual operation, robotic arms can avoid parts damage or production downtime caused by human error, fatigue, and improper operation. Every action performed by the robot is precisely calculated and controlled to ensure the stability of product quality and the efficiency of equipment operation.

Reduce the impact and friction of machine components: The high-precision motion control of the 5-axis manipulator helps to reduce vibration and impact during transportation, avoiding mechanical component wear and failure caused by improper operation.

3. Automation adjustment and optimization: real-time adaptation to changes in the production environment

During the production process, environmental factors, material characteristics, and process parameters may change, leading to instability in the production line. The 5-axis material handling operator, through its intelligent control system, can adjust operating parameters in real time according to changes in the production environment, ensuring that the production process is not affected by external factors and reducing downtime or quality problems caused by untimely adjustments.

Dynamic adjustment of operating parameters: The operator can automatically adjust parameters such as handling speed, path, and pressure based on real-time feedback, ensuring consistency in production efficiency and product quality even when the production environment changes.

Automatic adaptation to material changes: When handling materials of different sizes, weights, or shapes, the 5-axis operator can adapt to changes in material characteristics in real time and automatically adjust its operation mode to ensure the smooth progress of the handling task.

4. Efficient energy management: reducing resource waste and excessive consumption

The intelligent control system of the 5-axis manipulator can effectively manage the energy usage of the machine, avoiding excessive consumption and unnecessary waste. In the production process, energy waste not only affects cost-effectiveness, but may also lead to equipment overheating, overload and other problems, which in turn affect the stability of production and the service life of equipment.

Energy saving mode: The intelligent control system can adjust the motion mode and energy consumption of the robot arm according to different production tasks, avoiding unnecessary energy waste. By optimizing control algorithms, the frequency of equipment idling or excessive operation can be reduced, thereby extending the service life of the equipment and reducing malfunctions.

Load monitoring and optimization: The operator can monitor the load situation of the equipment in real time and automatically adjust the working mode to avoid overload, thereby preventing equipment from malfunctioning due to overload operation.

5. System integration and collaborative work: optimizing production processes

The 5-axis material handling operator can be intelligently integrated with other equipment on the production line, such as feeding systems, stamping machines, detection systems, etc., to achieve more efficient production scheduling and task allocation through data exchange and collaborative work. This collaborative work method reduces ineffective downtime in production and ensures production continuity and stability through coordinated cooperation between devices.

Automated collaborative control: Seamless integration with other equipment on the production line allows operators to automatically adjust work speed and tasks based on production progress, avoiding overall downtime of the production line due to the shutdown of individual equipment.

Unified scheduling and management: The intelligent control system integrates multiple devices to achieve unified scheduling and management, reducing unplanned downtime and equipment conflicts in production and improving production efficiency.

summary

The 5-axis material handling operator greatly reduces the failure rate and downtime of production line equipment through intelligent control system and high-precision motion control, thereby improving production stability. The intelligent control system can not only monitor and predict the health status of equipment in real time, provide early warning and predictive maintenance, but also reduce mechanical wear and errors through precise motion control, and adjust operating parameters in a timely manner when the production environment changes. In addition, efficient energy management and system integration collaboration have further optimized production processes and equipment operation efficiency. Through these technological means, the 5-axis manipulator can significantly improve the automation level of the stamping production line, ensuring the efficient and stable operation of the production line.

Question: How do you ensure the safety of operating robots at high speeds?

Answer: We equip our operating robots with safety guards and emergency stop systems, and we program safety zones to ensure safe operation at high speeds.

Question: Is it complicated to install and commission the robot?

Answer: Our robots are simple in design and easy to install. We provide professional installation and commissioning services to ensure that the robot can be put into operation quickly.

Question: What is the service life of an operating robot?

Answer: Under normal use and maintenance conditions, our operating robots are designed for a service life of 10 years or more.
