Efficiency

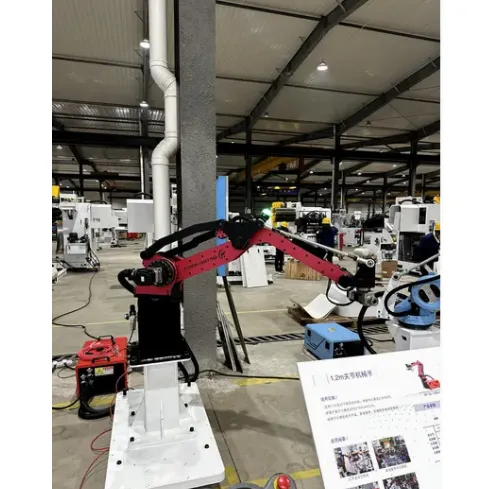

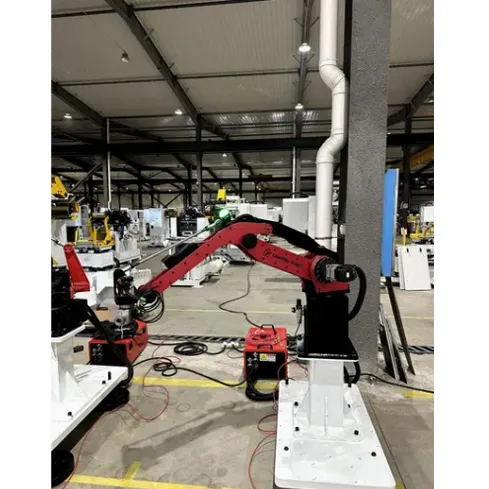

Arm span of 120cm, load of 6KG, using independently developed robot control algorithm to achieve linkage control of various axes. Targeting the feeding characteristics of the stamping industry, the motion trajectory is automatically generated, with smooth and efficient actions and an efficiency of 15 times/min.

Servo System

-All axes are equipped with high-performance servo systems.

Line optimization, overall superior performance, and equipped with power-off position memory function to avoid the trouble of origin reset.

-Once set, it can be used for a long time.

Adopting open programmable technology, supporting motion trajectory editing, simple operation, flexible control, can store multiple product information, strong interchangeability, and can be used for a long time with one set.

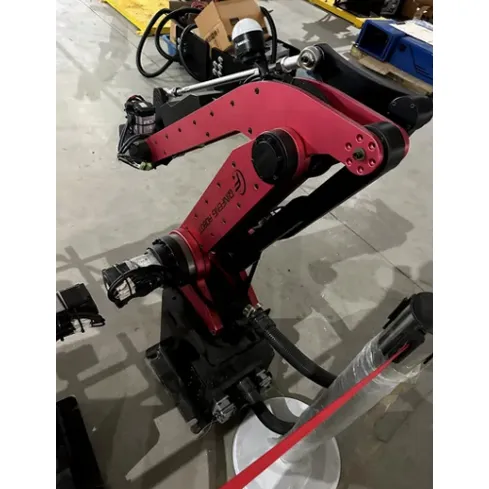

Robot Arm

High flexibility to achieve various stamping actions in all directions and from multiple angles:

Flipping, waste removal (before discharging), side hanging, oblique placement or stacking, etc.

Suitable for continuous mold, single machine multi-mode and other mold processes.

Four axis / five axis options are available.

Detailed exploration of the application of joint manipulators in automated stamping factories

1. Basic overview of the joint manipulator

A joint manipulator is a highly flexible automated robotic arm that achieves precise operation and control through multiple degrees of freedom (typically 5 or more axes). This device can achieve automated production tasks through programming, greatly improving the automation level and efficiency of the production line. In automated stamping factories, the joint manipulator can handle various complex tasks, such as material handling, stamping mold repositioning, product assembly, product handling, etc.

2. Key factors for improving the automation level of production lines

(1) High precision operation

The precision of the joint manipulator is usually in the micrometer level, which can perform complex operational tasks and ensure that each operation meets strict production standards. In automated stamping production, precise positioning and action are the core to ensure processing quality and production efficiency. The robotic arm uses advanced sensors and precise control systems to perform real-time calibration on the position, angle, and other parameters of each part, ensuring machining accuracy and improving overall production quality.

(2) Multi axis degrees of freedom and flexibility

Joint manipulators typically have 5, 6, or more degrees of freedom, allowing them to perform complex movements and operations in three-dimensional space. On the stamping production line, the joint manipulator can accurately locate and process workpieces of different shapes and sizes, and can flexibly adapt to different process requirements whether it is handling, processing, or assembly. This flexibility significantly enhances the automation level of the production line, reducing the need for manual intervention and adjustment.

(3) Integration of automation control system

The joint manipulator is equipped with an advanced control system that enables highly automated operations. Through an integrated intelligent system, the joint controller can achieve information sharing and real-time collaboration with other devices on the production line, such as presses, conveyors, etc. This intelligent control can automatically adjust process parameters, coordinate production pace, and minimize manual intervention.

3. Advantages of reducing manual intervention

(1) Improve production efficiency

The traditional stamping process usually requires a large amount of manual operation, such as loading and unloading of workpieces, replacement of molds, and handling of finished products. And the joint manipulator can automate these tasks, significantly improving production efficiency. Robot arms can not only perform highly repetitive tasks, but also work continuously without interruption, unaffected by fatigue, thereby significantly reducing production cycles.

(2) Reduce human errors and operational mistakes

Manual operation is easily affected by human factors such as fatigue, lack of concentration, etc., which can lead to operational errors or processing deviations. The high-precision operation and consistency of the joint manipulator can ensure the precise execution of each action, avoid human errors, and thus improve product consistency and quality in the production process.

(3) Save labor costs

Automated production lines can significantly reduce reliance on manual operations, especially in high-frequency, repetitive, and high-risk work processes, resulting in significant savings in labor costs. For example, in traditional stamping processes, workers need to frequently operate heavy machinery, but through the automation of joint manipulators, workers can reduce the number of direct contacts with the machine, lower labor intensity, and focus their energy on higher value management and decision-making work.

4. How to improve the accuracy and flexibility of automated stamping factories with joint controllers

(1) Precise control

One core advantage of the joint manipulator is its excellent precision control capability. Through high-precision servo motors, sensors, and real-time feedback control systems, robots can accurately perform every action in the stamping process, such as precise positioning and grasping of workpieces, ensuring that every step in the stamping process meets quality standards. For some high-precision stamping products (such as automotive parts, electronic components, etc.), this precision control is crucial.

(2) Action coordination and multitasking execution

The joint manipulator has high coordination ability and can execute multiple tasks simultaneously. For example, within a production cycle, robots can simultaneously complete multiple tasks such as workpiece handling, mold replacement, and stamping operations, which often require multiple workers to complete simultaneously. By parallelizing multiple tasks, the joint manipulator improves the efficiency of the production line and reduces the time consumption of individual processes.

(3) Flexible adaptation to different product requirements

In the stamping production process, it is often necessary to deal with products of different specifications and shapes. The joint manipulator can quickly adjust the operation path and parameters through programming to adapt to different processing requirements without the need to readjust the entire production line. Compared to traditional fixed mechanical equipment, the flexibility advantage of joint manipulators makes them an ideal choice for meeting diverse production needs.

5. Application cases in automated stamping factories

Case 1: Automotive Industry

In the production of automotive parts, joint controllers are widely used for automatic replacement of stamping molds, handling of metal sheets, and precision stamping operations. Traditional manual operation not only increases the labor intensity of workers, but also easily leads to product defects due to improper operation. After the introduction of the joint controller, various tasks on the production line have been automated, work efficiency has been improved by more than 30%, and product quality is stable.

Case 2: Home Appliance Industry

The metal stamping production in the home appliance industry also benefits from the automation control of the joint manipulator. In the production process of metal shells, brackets and other parts of household appliances, the joint manipulator can efficiently and accurately complete the workpiece handling and stamping process, ensuring the accuracy and consistency of the product, and reducing the time for manual handling and adjustment, further improving production efficiency.

6. Summary

The application of joint controllers in automated stamping factories greatly enhances the automation level of production lines through the integration of high-precision operation, multi axis flexibility, and intelligent control systems. By reducing manual intervention, the joint manipulator not only improves production efficiency and reduces production costs, but also ensures consistency and accuracy in product quality. With the continuous advancement of technology, joint manipulators will play an important role in more industries, promoting the development of metal processing and other manufacturing industries towards higher efficiency and intelligence.

Question: What types of metal stamping processes is the joint manipulator suitable for?

Answer: Joint controllers are widely used in various metal stamping processes, including but not limited to sheet metal stamping, mold stamping, sheet metal forming, etc. It is particularly suitable for metal processing tasks that require high precision and high speed. Whether in the automotive, home appliances, electronic devices, or other manufacturing industries, joint manipulators can efficiently handle various metal processing needs.

Question: Can the Joint Manipulator be integrated with our existing automated stamping systems?

Answer: Yes, our Joint Manipulator is engineered to be compatible with a wide range of automated systems. Our integration team will work closely with you to ensure seamless integration with your current setup.

Question: What is the maximum payload capacity of the Joint Manipulator?

Answer: The Joint Manipulator is capable of handling payloads up to 50 kg, making it suitable for a variety of metal fabrication applications.
